(6+1)×1 Multi-mode Pump Combiner
The (6+1)×1 Multi-mode Pump Combiner is designed for high power fiber laser. It combines six pump channels and one signal channel into one double cladding output fiber. Fiber type can be customized in terms of its type.
Low insertion loss
High pump transfer efficiency
High stability
+86-27-65271788
sales@everfoton.com
Applications
- Fiber laser
- Fiber amplifier
- Optical instrument
Specifications
| Product Type | MPC3-P13-S699-10-C5-F | MPC3-P16-S600-10-C5-F | MPC3-P13-S58D-10-C5-B | MPC3-P16-S58D-10-C5-B | MPC3-P26-S57F-18-C5-B | |||
| Pump Operating Wavelength (nm) | 800 - 1000 | 800 - 1000 | 800 - 1000 | 800 - 1000 | 800-1000 | |||
| Input Pump Port | ||||||||
| Core/Cladding Diameter (µm) | 200/220 | 220/242 | 200/220 | 220/242 | 220/242 | |||
| Numerical Aperture | 0.22 | 0.22 | 0.22 | 0.22 | 0.22 | |||
| Input Signal Port | ||||||||
| Fiber Type | GDF-DC 20/400-0.065 | GDF-DC 20/400-0.065 | GDF-DC 25/400-0.065 | GDF-DC 25/400-0.065 | YOCE GDF-DC 20/400-0.065 | |||
| Output Port | ||||||||
| Fiber Type | GDF-DC 20/400-0.065 | GDF-DC 20/400-0.065 | GDF-DC 50/400-0.11 | GDF-DC 50/400-0.11 | YOCE GDF-DC 25/250-0.065 | |||
| Optical Properties | ||||||||
| Pump Efficiency (%) | ＞97% | ＞97% | ＞97% | ＞97% | ＞97 | |||
| lnsertion Loss (dB) | ＜1dB | ＜1dB | ≤0.2dB | ≤0.2dB | ≤0.2 | |||
| Max. Input Signal Power (W) | - | - | 3000 | 3000 | 3000 | |||
| Max. Pump Power Per Port (W) | 500 | 500 | 500 | 500 | 500 | |||
| Environmental Properties | ||||||||
| Operating Temperature (℃) | -5 to +70 | -5 to +70 |
-5 to +70 |
-5 to +70 |
-5 to +70 | |||
| Operating Relative Humidity (%) | 5% - 85% | 5% - 85% | 5% - 85% | 5% - 85% | 5 - 70 | |||
| Storage Temperature (℃) | -40 to +85 | -40 to +85 | -40 to +85 | -40 to +85 | -40 to +85 | |||
| Appearance | ||||||||

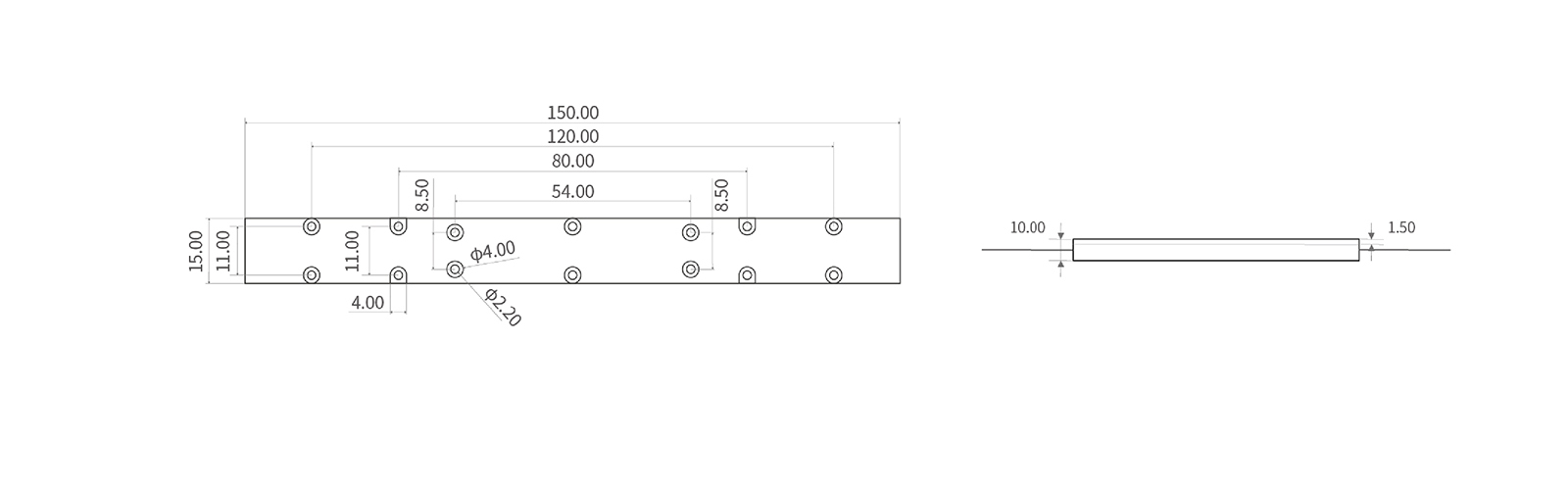

| Dimensions (mm) | 10×15×150 | 10×15×150 | 10×15×150 | 10×15×150 | 10 ×15×150 | |||
| Pigtail Length (m) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |||
