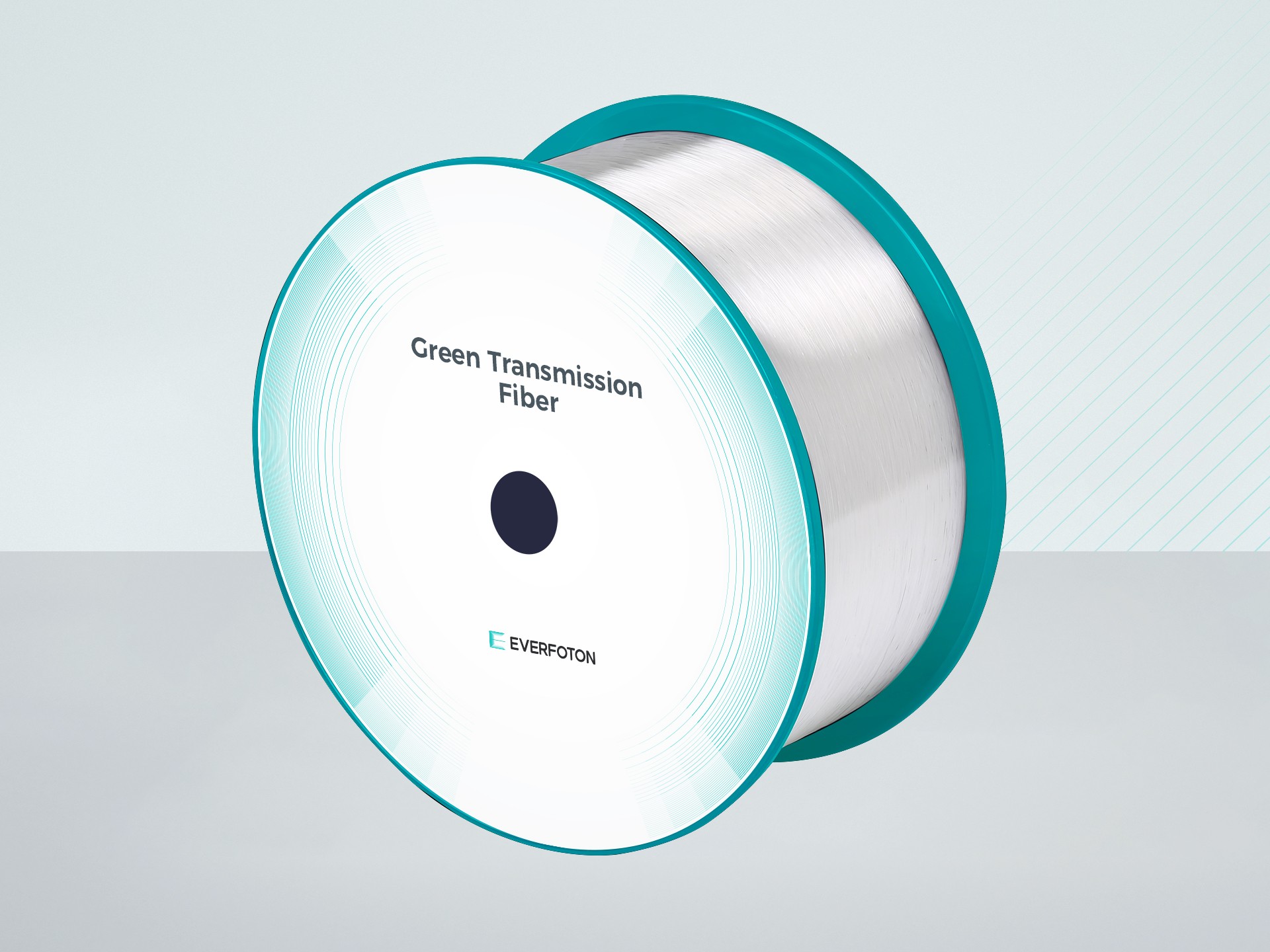

Green Transmission Fiber
Everfoton Green Transmission Fiber is fabricated from special materials to meet the demands of green laser applications. Featuring a high-hydroxyl silica core structure and operating in the wavelength range of approximately 490–580 nm, it leverages high brightness, small spot size, and unique material absorption characteristics for wide use in industrial processing, scientific research, and medical fields. The fiber can be customized in geometric dimensions and numerical aperture to suit specific application requirements.
High beam quality
High power output
High electro-optical conversion efficiency
Industrial reliability
Customized geometric sizes and NAs
027-65271788
sales@everfoton.com
Applications
- Ultra-High Power Fiber Laser
- Ultra-High Brightness Fiber Laser
- Long-Distance, Large-Format Laser Processing
- High-Brightness Semiconductor Pump Output
Specifications
| Parameter | UV 50/55-22/110(DC) | UV 50/125-22/250(DC) | UV 100/120-22/240(DC) | UV 135/160-22/320(DC) | UV 200/220-22/320(DC | UV 365/400-22/730(DC) | UV 550/600-22/1040(DC) | UV 910/1000-22/1300(DC) |
| Part No. | UV2110-D | UV2111-A | UV2112-A | UV2110-B | UV2110-C | UV2110-E | UV2110-F | UV2110-A |
| Optical Properties | ||||||||
| Operating Wavelength (nm) | 490~580 | |||||||
| Core NA | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 |
| Cladding NA | ≥ 0.46 | ≥ 0.46 | ≥ 0.46 | ≥0.46 | ≥0.46 | ≥0.46 | ≥0.46 | ≥0.46 |
| Refractive Index Structure | 阶跃型 | 阶跃型 | 阶跃型 | 阶跃型 | 阶跃型 | 阶跃型 | 阶跃型 | 阶跃型 |
| Geometrical Properties | ||||||||
| Core Diameter (μm) | 50.0±2.0 | 50.0±2.0 | 100.0±3.0 | 135.0±4.0 | 200.0±3.0 | 365.0±8.0 | 550.0±10.0 | 910.0±10.0 |
| Cladding Diameter (μm) | 55.0±3.0 | 125.0±3.0 | 120.0±5.0 | 160.0±5.0 | 220.0±5.0 | 400.0±10.0 | 600.0±15.0 | 1000.0±15.0 |
| Core/Cladding Concentricity（μm） | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤5.0 | ≤7.0 | ≤15.0 |
| Coating Diameter (μm) | 110.0±15.0 | 250.0±15.0 | 240.0±20.0 | 320.0±20.0 | 320.0±45.0 | 730.0±30.0 | 1040.0±30.0 | 1350.0±50.0 |
| Material Properties | ||||||||
| Core Material | High-OH Pure Silica | High-OH Pure Silica | High-OH Pure Silica | High-OH Pure Silica | High-OH Pure Silica | High-OH Pure Silica | High-OH Pure Silica | High-OH Pure Silica |
| Cladding Material | Fluorine-doped Silica | Fluorine-doped Silica | Fluorine-doped Silica | Fluorine-doped Silica | Fluorine-doped Silica | Fluorine-doped Silica | Fluorine-doped Silica | Fluorine-doped Silica |
| Inner Coating Material | Low Refractive Index Coating | Low Refractive Index Coating | Low Refractive Index Coating | Low Refractive Index Coating | Low Refractive Index Coating | Low Refractive Index Coating | Low Refractive Index Coating | Low Refractive Index Coating |
| Outer Coating Material | Acrylate | Acrylate | Acrylate | Acrylate | Acrylate | Acrylate | Acrylate | Acrylate |
| Operating Temperature (℃) | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 |
| Proof Test (kpsi) | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥75 |
