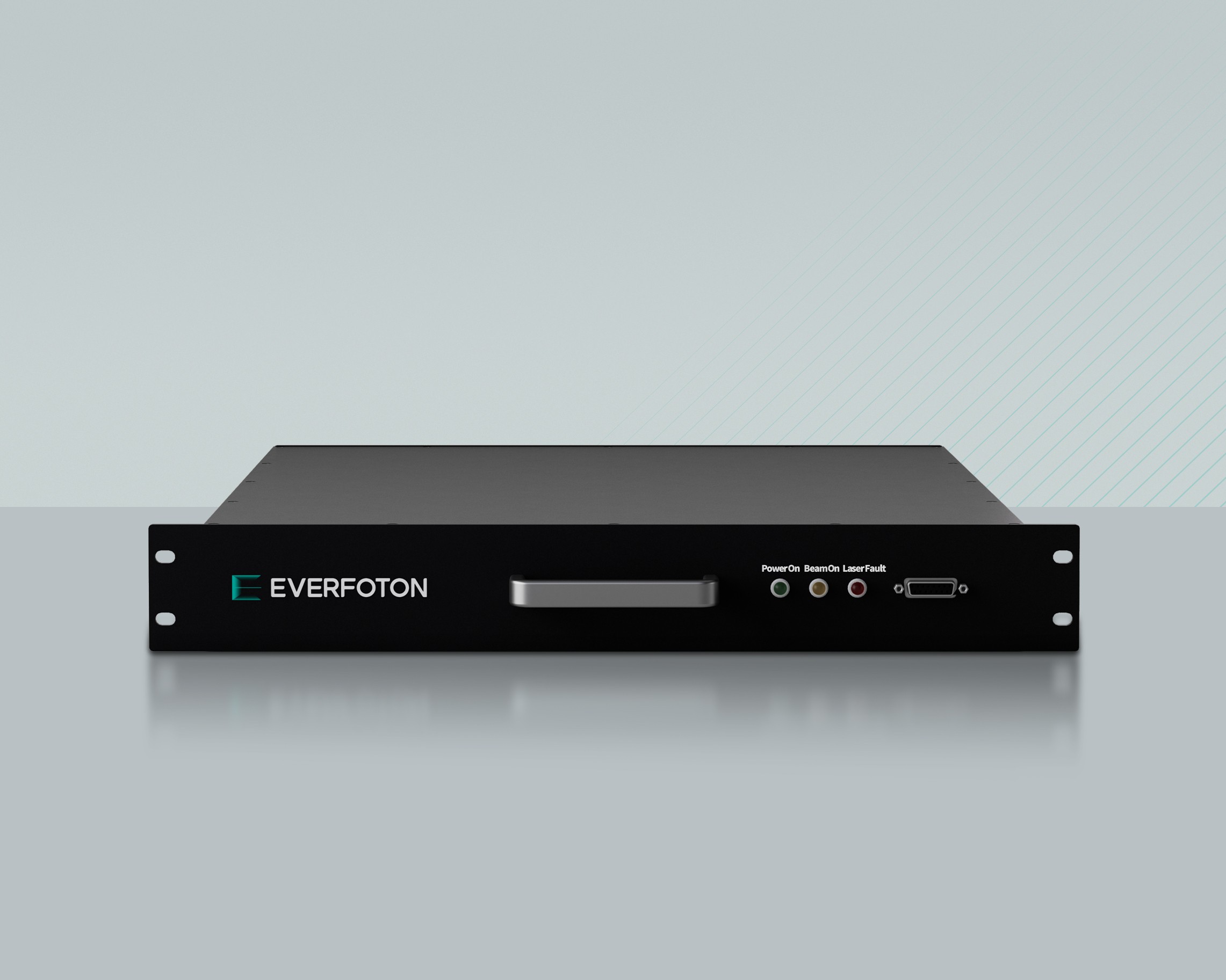

300~1000W High-stability CW Fiber Laser
Everfoton's High stability CW Fiber Laser with sealed design, which ensures the reliability of the product while achieving high power stability,single mode laser beam quality. The QBH or QCS armored fiber cable areoptional. With fast response to Dl/AI control inputs, it will satisfy the most demanding applications such as 3D printing,photovoltaic cell manufacturing microprocessing and fine welding.
Single-mode laser beam quality
Excellent Long-term power stability
Fast response
Integrated remote monitoring
027-65271788
sales@everfoton.com
Applications
- Precision welding
- Precision cutting
- Photovoltaic manufacturing
- 3D printing
Specifications
| Model | FFRC-300-H | FFRC-500-H | FFRC-1000-H | ||||||
| Optical Characteristics | |||||||||
| Output Power (W) | 300 | 500 | 1000 | ||||||
| Operating Mode | CW / Modulated | ||||||||
| Polarization | Random | ||||||||
| Power Range (%) | 10 ~ 100 | ||||||||
| Beam Quality (M2) | 1.1 | ||||||||
| Output Power Instability at 25°℃(%) | < 1 (24h) | ||||||||
| Central Wavelength (nm) | 1080 ± 5 | ||||||||
| Spectrum Width FWHM (nm)) | ＜ 4 | ||||||||
| Beam Ellipticity(%) | ≥ 96 | ||||||||
| Modulation Frequency (kHz) | 20 | ||||||||
| Red Laser Power (μW) | > 200 | ||||||||
| Output Cable Parameters | |||||||||
| Output Mode | QBH / QCS | ||||||||
| Cable Length(m) | 3 | 5 | |||||||
| Output Fiber Core Diameter(μm) | 14 | ||||||||
| Minimum Bending Radius of Cable (mm) | 200 | ||||||||
| Electrical Characteristics | |||||||||
| Operating Voltage (VAC) | 200 ~ 240, 1PH 50/60Hz | ||||||||
| Rated Power Consumption (kW) | 1 | 2 | 3 | ||||||
| Control Mode | RS232 / AD / Ethernet | ||||||||
| Other Parameters | |||||||||
| Operating Temperature (℃) | 10 ~ 30 | ||||||||
| Relative Humidity (%) | 10 ~ 80 | ||||||||
| Storage Temperature (°C) | -20 ~ 60 | ||||||||
| Cooling Method | 水冷 | ||||||||
| Water-cooling Temperature (℃) | 25 ± 1 | ||||||||
| Water-cooling Flow (L/min) | ＞ 10（Laser），1.5 ~ 2.5（QBH） | ||||||||
| Water-cooling Pressure (Bar) | 3 ~ 5 | ||||||||
| Joint Diameter(mm) | 12 | ||||||||
| Dimensions (W*D*H)(mm) | 482 x 410 x 66(including handle) | ||||||||
| Weight (kg) | 20 ± 3 | ||||||||
