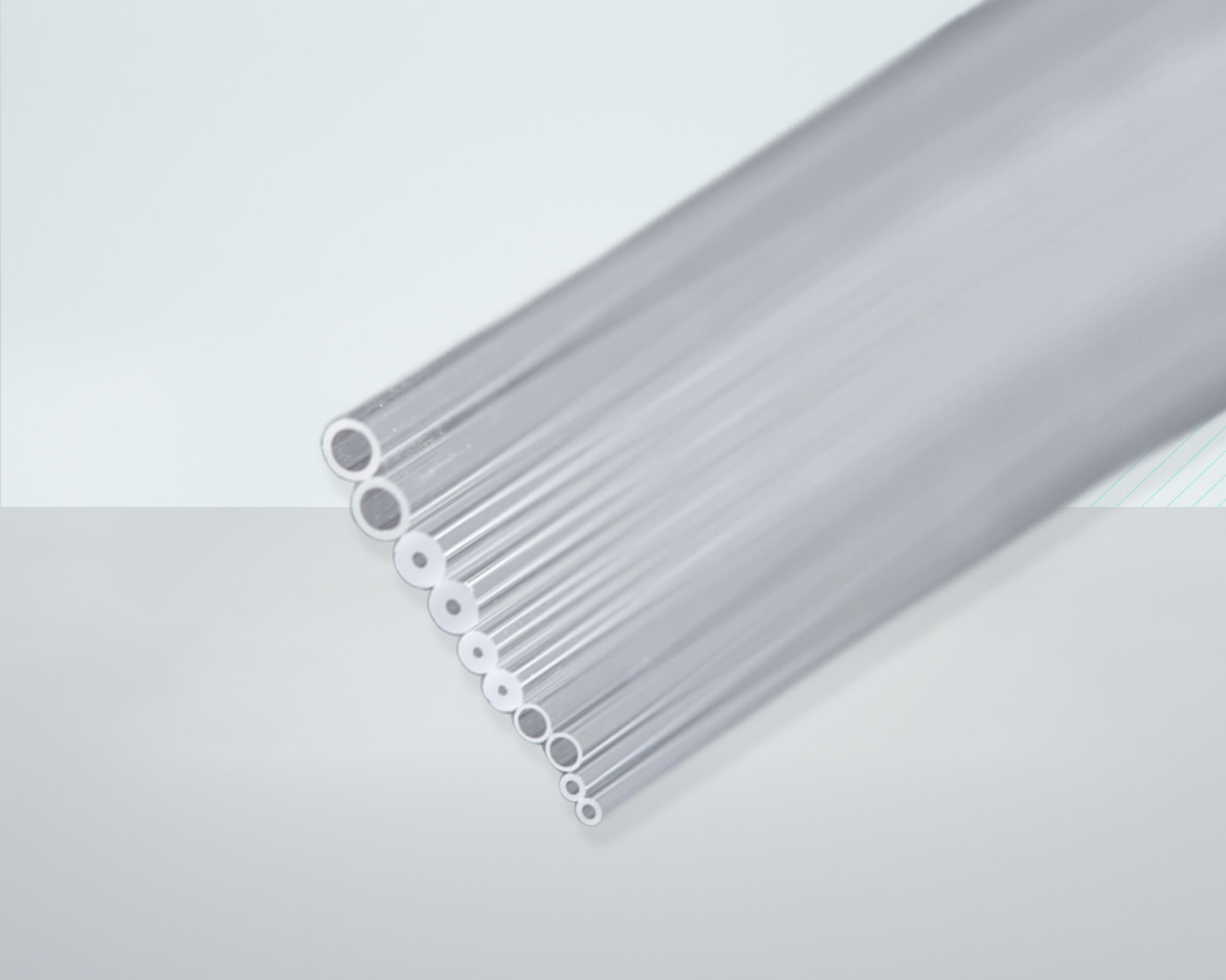

Fluorine-doped Capillary Tube

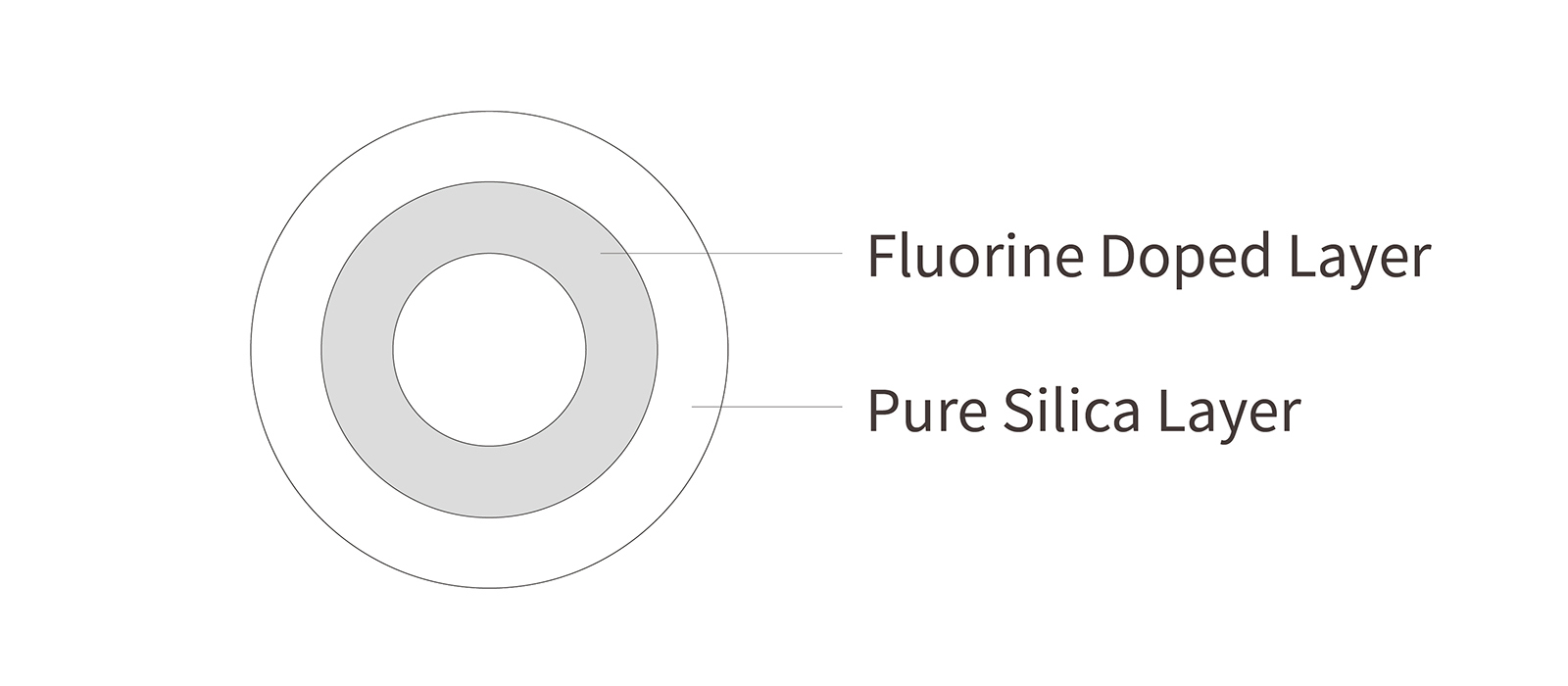

Everfoton can provide multi-layer Fluorine-doped Capillary Tube with low internal refractive index and high external refractive index based on PCVD, which is suitable for high-power combiner and photon lantern, and meets various application requirements.

Excellent optical performance
Excellent dimensional uniformity
Excellent temperature tolerance

+86-27-65271788
sales@everfoton.com

Download of Specifications More Information

Applications Specifications

Applications

High-power combiner
Photonic lantern

Specifications

Product Type	DFT0.75/0.4-150-0.22	DFT1.5/0.8-150-0.22	DFT1.1/0.85-150-0.22
*Length (mm)	150 ± 0.1		150 ± 0.3
Typical Value of NA	0.22
Material	F-doped SiO₂
Outside Diameter (mm)	0.75 ± 0.05	1.5 ± 0.05	1.1 ± 0.05
Internal Diameter (mm)	0.4 ± 0.05	0.8 ± 0.05	0.85 ± 0.05
Ratio of Outer Diameter to Inner Diameter of Fluorine-doped Layer	＞1.1

*The length can be customized within 150 mm
